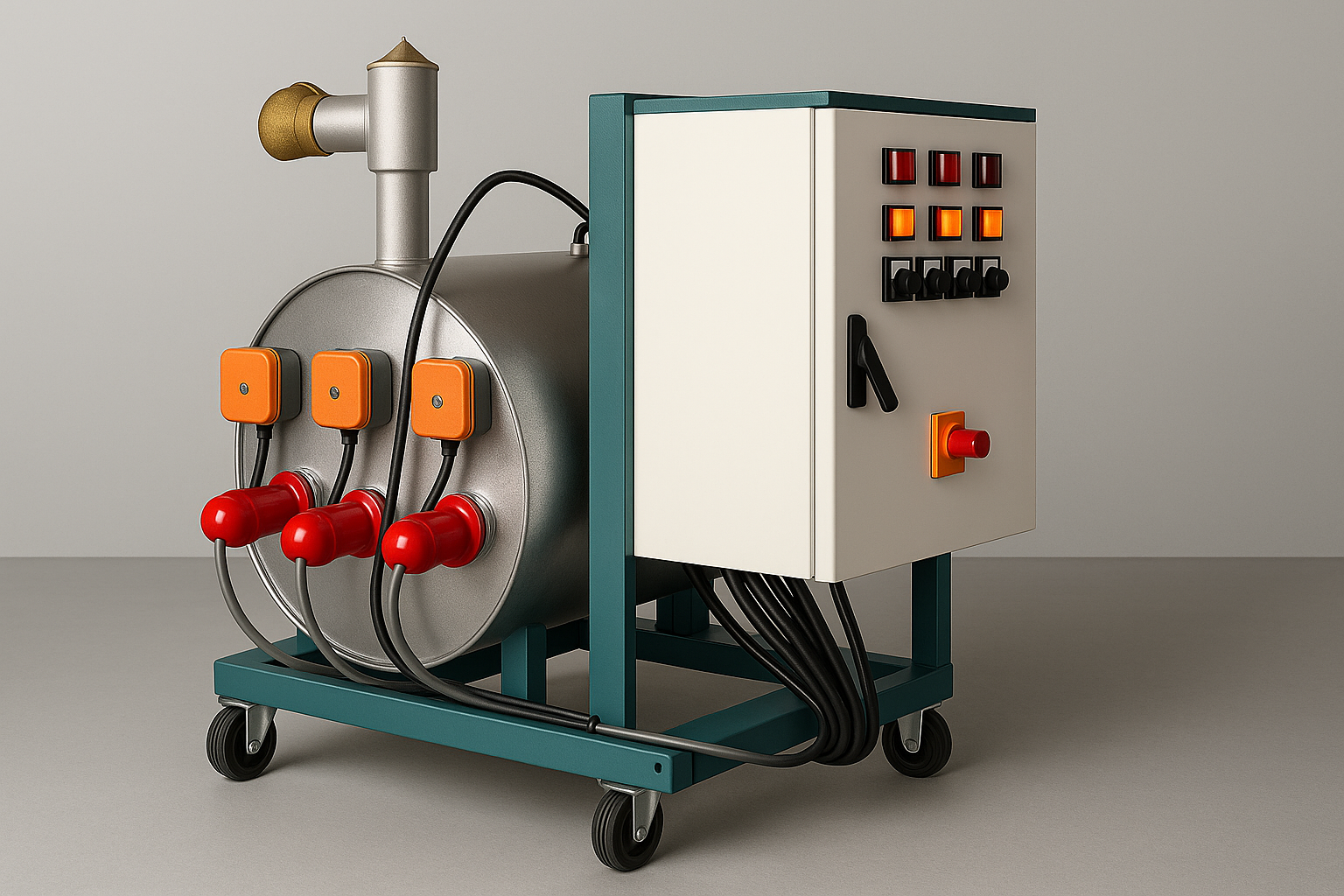

18 kW Preheater (KL-18)

TEKNİK ÖZELLİKLER

Fluid: Type Water Coolant
Heat Power: 6kW – 12kW – 18kW (adjustable)
Temp Control: 0 - 90°C (adjustable)
Temp High Limit: 90°C
Tank Capacity: 50 liters
Pump Power: Optional
Inlet Diameter: 1” NPT Standard, Optional ANSI or Metric
Outlet Diameter: 1” NPT Standard, Optional ANSI or Metric
Max. Pressure: 6 bar
Phase: Three Phase
Voltage: (50 Hz) 380V
Voltage: (60 Hz) 440V
Inlet Temp.: 10°C (Testing Temperature)
Outlet Temp.: 80°C (Testing Temperature)
Capacity: 3 x 6 kW (6 kW resistance)

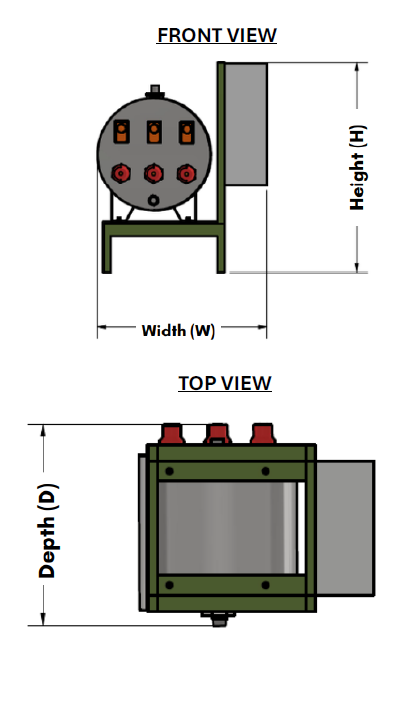

Height (H): 860 mm
Width (W): 700 mm
Depth (D): 603 mm
